Engineering Technologies Flowserve Sanmar Flowserve VRA Mixer Seal

Flowserve Sanmar

Market leader in engineered mechanical sealing devices, offering a wide choice to the industry

Thumbnail Image

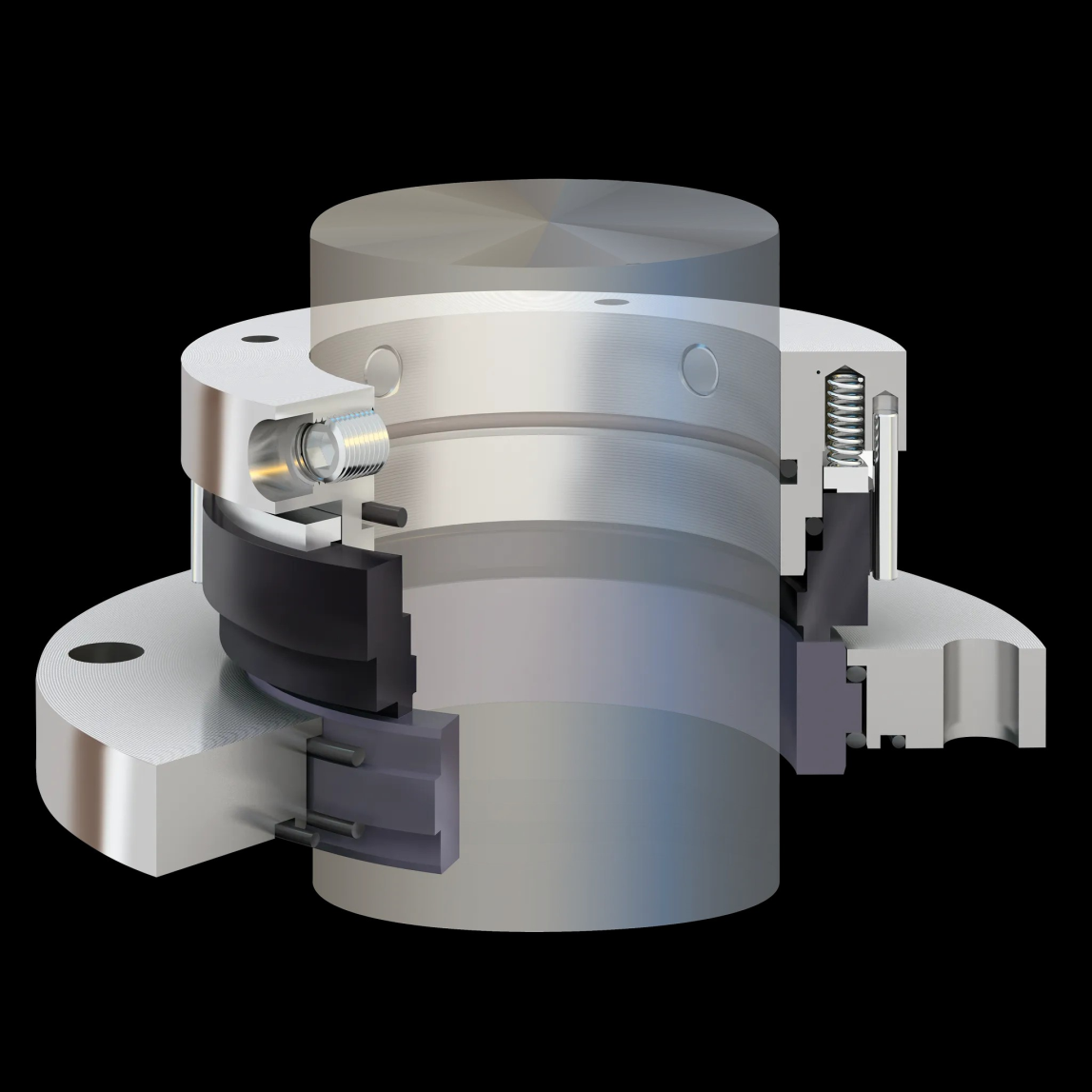

Flowserve VRA Mixer Seal

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Add Your Heading Text Here

Self-lubricating carbon or filled PTFE seal face affords dry running without face cooling, long life and reliability
Flexible rotor design compensates for shaft misalignment. The VRA operates at eccentric run-out levels up to 3.81 mm (0.150 inch) TIR.
Double o-ring mounted stator prevents distortion.

The VRA-C with non-metallic collar option provides superior chemical resistance. Eliminates the need for expensive exotic metal alloys in non-wetted areas.
Optional sanitary gland allows steam cleaning and sterilizing of the seals interior while mounted on the equipment. Sanitary porting aids in the removal of steam cleaning debris.

Add Your Heading Text Here

Size Range: 25 to 178 mm (1.000 to 7.000 in)
Metal Components: 316 Stainless Steel, Filled PTFE
Rotating Face: Carbon, Filled PTFE

Stationary Face: Durachrome, Tungsten Carbide, Aluminum Oxide
Gaskets: Fluroelastomer, Perfluroelastomer, EPR
Springs: Alloy C-276
